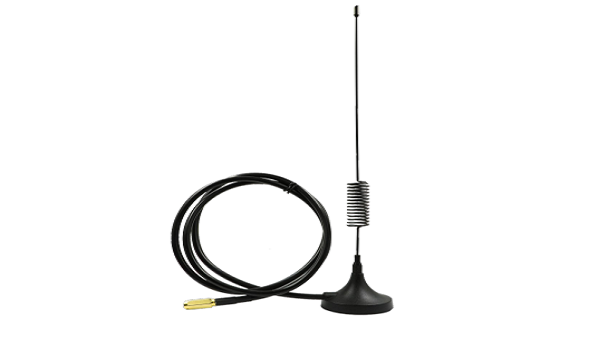

YXH001AA

Part description:

• Frequency Range:  700–960 MHz, 1710–2690 MHz, 3300–5000 MHz
• Input Impendence:  50 Ω
• VSWR: ≤ 4.0
• Gain: ≤ 4.5 dBi
• Polarization Type:  Linear
• Detailed Passive Electrical Specifications:
• Frequency Range (MHz):  698–960 1176–1280 1400–1610 1710–2170 2170–2690 3300–4000 4000–5000 5000–6000
• VSWR (Max.):  4.5 – – 3.84 3.49 3.80 3.91 –
• Average Efficiency (%): 44 – – 39 40 35 28 –
• Max. Peak Gain(dBi): 3.3 – – 4.5 4.5 3.3 3.1 –
• Antenna Size:  285 mm × 45 mm
• ALSR195 Cable Length = 1000 mm
• Casing: ABS
• Connector Type:  SMA Male (Center Pin)
• Working Temperature:  -40 °C to +85 °C
• Radome Color:  Black
• IP Rating:  IP65
• Mounting Type:  Magnet
