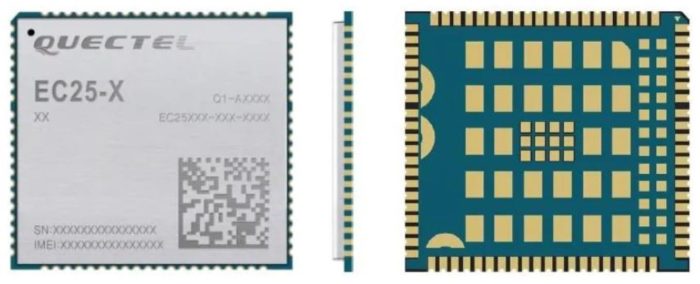

1. EC25EFA-512-STD – 4G/ LTE Cat4 IoT Standard Cat4 Module
1a- Category – LTE Family
1b. Sub-Categoty – EC25 Series
2. DESCRIPTION: Quectel EC25 is a series of LTE category 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.
11 LTE technology, it delivers 150Mbit/s downlink and 50Mbit/s uplink data rates. Designed in the compact and unified form
factor, EC25 is compatible with Quectel UMTS/HSPA+ UC20 module and multi-mode LTE EC20/EC21 module, which allows for
flexible migration among them in design and manufacturing.
3. Remote Monitoring, Data Logger, VTS, OBD, Gateway.
4. Speed Max – 150 Mbps (DL) / Max 50 Mbps (UL)
5. 144 pins, 80 LCC pins and 64 LGA pins.
6. Supply Voltage: 3.3–4.3 V DC, 3.8 V DC Typical
7. 32.0mm x 29.0mm x 2.4mm
8. Weight: Approx. 4.9g
9. Network – LTE Cat4 / 3G/ 2G
10. Regulatory : RoHS Complaint, CE / GCF / FCC/ PTCRB
11. Temperature Range: -40°C ~ +85°C
12. Bands :
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
13. Supply Source : V-DC
